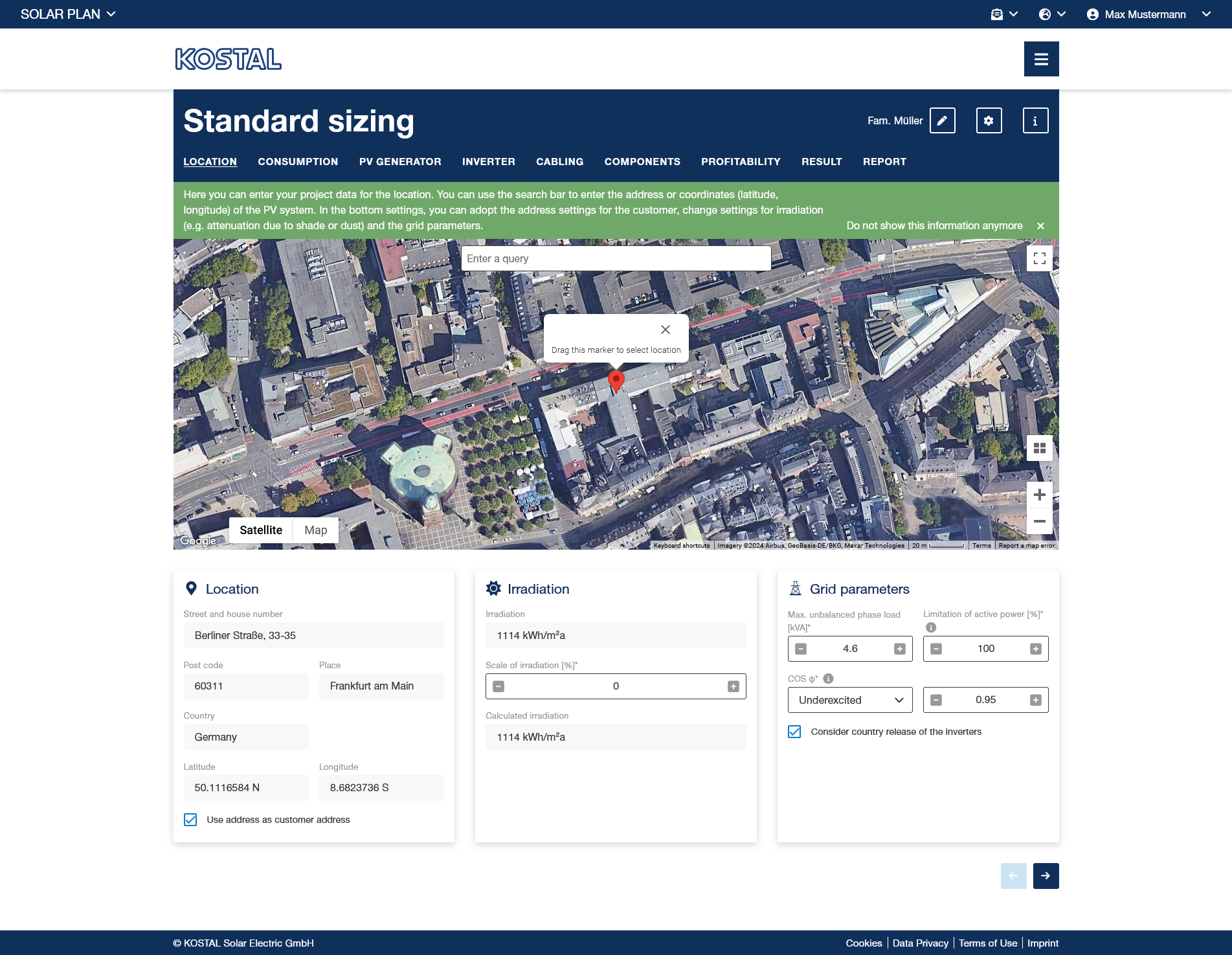

Creating project master data/location

  1. First of all, enter your project data for the location. You can use the search bar to specify the address or coordinates (latitude, longitude) for the planned PV system. The data is then automatically transferred into the Location fields and the customer address is updated.
    Tip: When entering the location, start with the house number to find the correct address more quickly.
  2. You can adopt the standard value for solar irradiation at the location and the grid parameters or you can adapt them to your location and grid provider.
  1. Click on the right arrow to go to the next page.

INFO

Info

If the checkbox Use address as customer address has been checked, the PV system's location is automatically used as the customer address.

If the checkbox Consider country release of the inverters is checked, a check is carried out to ascertain which inverters are approved based on the location. The Inverter tab then only displays inverters that are approved.

Irradiation and climate databases

Different institutions provide KOSTAL Solar Electric GmbH with this data. Therefore, we cannot guarantee the completeness and/or accuracy of the data that we are given and that is shared with you.
