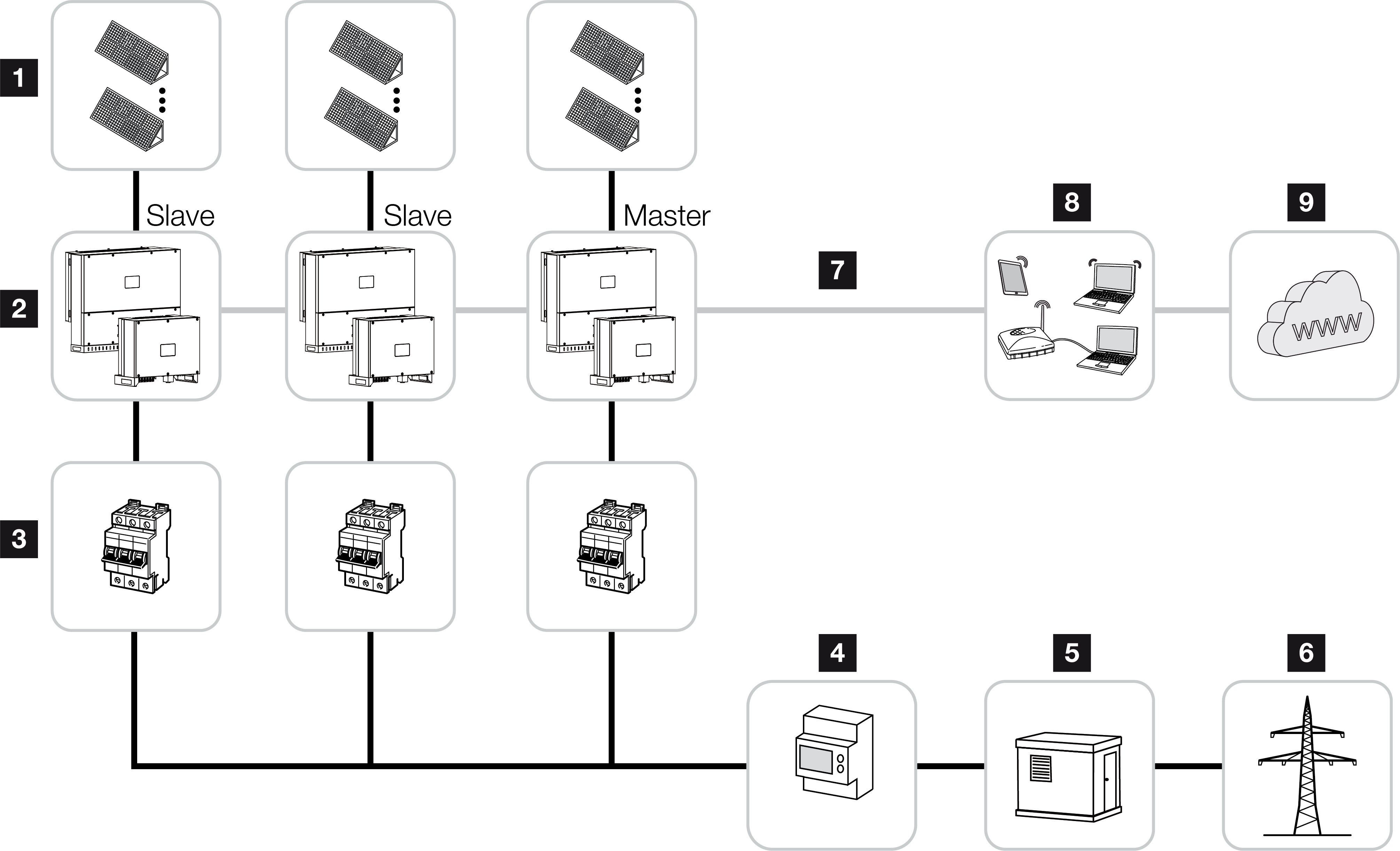

Systemübersicht

1 | PV-Strings |
2 | Wechselrichter PIKO CI 30 / 50 oder 60 |
3 | Leitungsschutzschalter AC |
4 | Energiezähler |
5 | Verteiler |
6 | Öffentliches Netz |
7 | Kommunikationsanbindung (optional) |
8 | Router, PC Anbindung |
9 | Internet |
1 | PV-Strings |
2 | Wechselrichter PIKO CI 30 / 50 oder 60 |
3 | Leitungsschutzschalter AC |
4 | Energiezähler |
5 | Verteiler |
6 | Öffentliches Netz |
7 | Kommunikationsanbindung (optional) |
8 | Router, PC Anbindung |
9 | Internet |
