Connecting the inverter to the KOSTAL PIKO CI app via Bluetooth

Only possible with PIKO CI 100 / PIKO CI 30/50 G2

The KOSTAL PIKO CI Conf App is opened or launched using a smartphone or tablet. To do this, the smartphone or tablet must be within range of the inverter.

  1. Enable the Bluetooth function on your tablet or smartphone.
  2. Switch on the inverter.
  3. Launch the app.
  4. If the prompt asking for permission to access location, camera and saving data appears on the smartphone, agree to this request.
  5. Select Bluetooth as the connection in the app.
  7. The list of inverters appears.
  8. If no inverter was found, you can
    - Refer to the type plate and Scan the inverter serial number barcode,
    - Enter the inverter Serial number yourself,
    - Select Manual connection via Bluetooth.
  9. Select a connection and connect to the inverter.

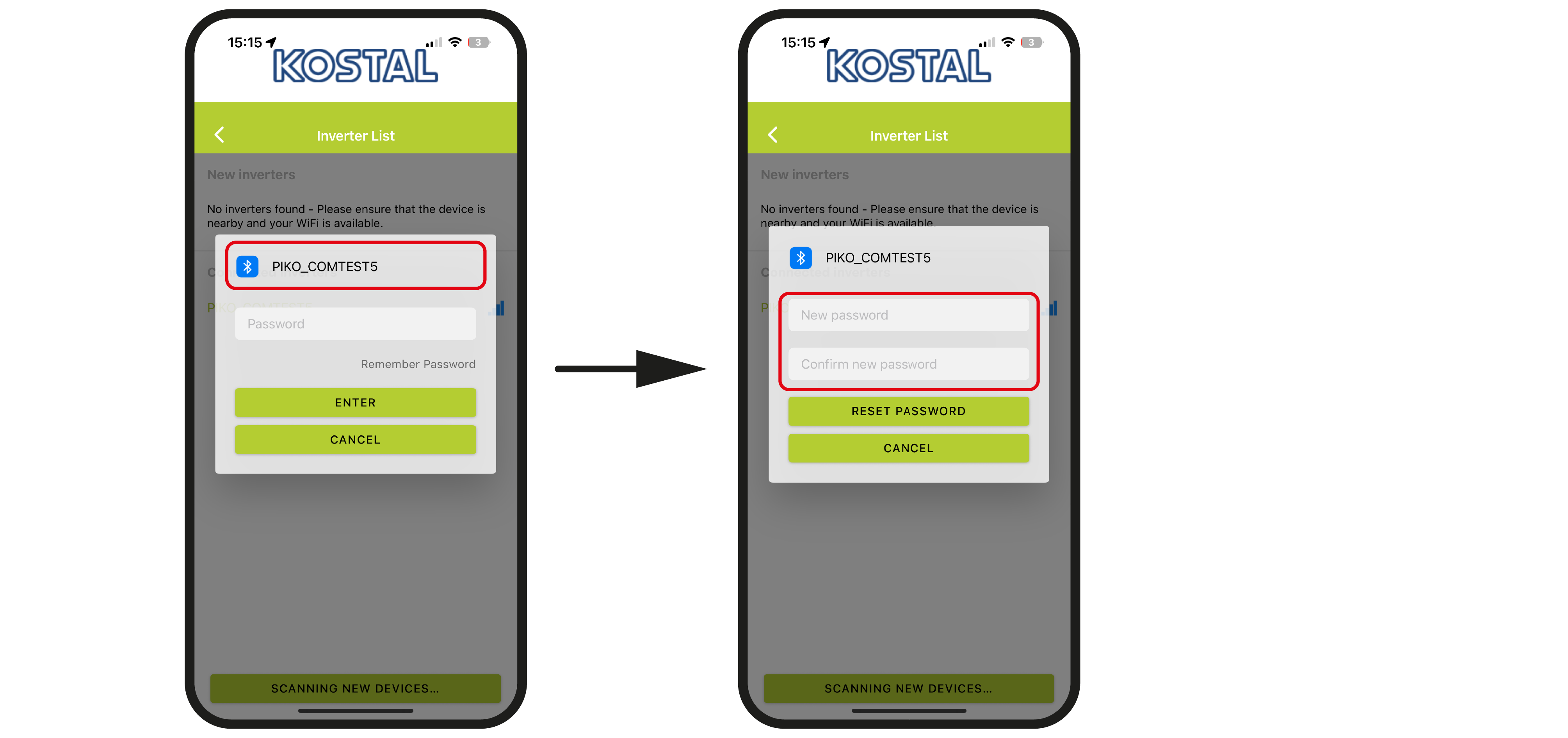

  10. The Bluetooth password entry window appears.
  11. Enter the Bluetooth password and confirm with Enter.
    You can also save the Bluetooth password for the next entry by pressing Save password.
  1. When the app displays the message Connect, the inverter is connected.

Forgotten Bluetooth password/change Bluetooth password

If you have forgotten or want to change the Bluetooth password, proceed as follows:

  1. Tap three times on the Bluetooth symbol, enter a new Bluetooth password and confirm the password by re-entering it.
  3. Confirm the entry by pressing Reset password.
  4. The Bluetooth password has been reset to the new Bluetooth password.
  5. Enter the Bluetooth password and confirm with Enter.
    You can also save the Bluetooth password for the next entry by pressing Save password.
